FLASH THR-M60N GADGET CIT

FLASH THR-M60N GADGET CIT dari MNC SKY VISION DEVICE via FLASH TOOL

bahan :

1.  Download firmwarenya STOCK ROM THR-M60N
2.  Download Flash Toolnya DOWNLOAD DISINI
3.  Driver bila belum punya instal dulu driver mtknya
4.  Untuk tutorial flash via Flash tool bisa dilihat DISINI

 CEK Versi THR-M60N GADGET CIT

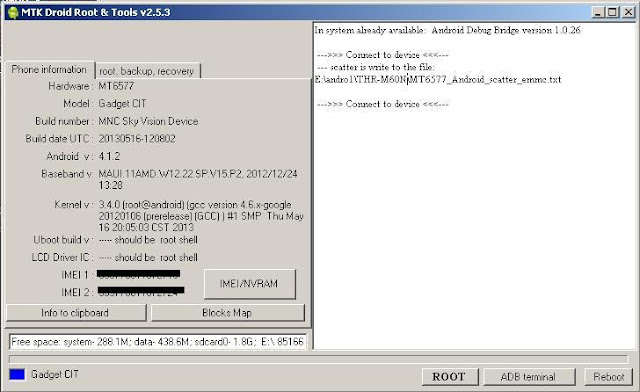

DARI MTK DROID

DARI CM2

FLASH VIA FLASH TOOL

BILA EROR PMT CHANGED :

CEK DARI FISIK DAN  LOG SOFTWARE, CENTANG SEMUA PILIH UPGRADE FIRMWARE ATAU FORMAT BARU FLASH LAGI

Operation : Check / Read Info [ v1.40 ]

1. Power Off Phone , Remove battery , Insert back
2. Insert USB cable. In some cases require hold BootKey

Wait for phone...
Phone found! [ 3 ]
Sync...
Inital regs read done
Boot Info :
BB_CPU_ID : 6575
BB_CPU_HW : CB00
BB_CPU_SW : 8B00
BB_CPU_SB : E201
BB_CPU_NM : [MediaTek] MT6575|MT6577_S00
Processing BROM stage
i2c Init : 0300771F
SpeedSet : 0000
VChrgSet : 0x28 , BatStat : 0x02
WD Disable stat : 0x0000
BLVersion : 0x01
SecCfgVal : 0x00000000
BromVersion : 0xFF
BLVersion : 0x01
Preloader Status : Alive
Processing DA stage
DA Select done , sending
DA Ver : MTK_AllInOne_DA_v5.1540.01.01
DA Stat : v3.2 on BBID : 0x84
DA Sent. Configure setting now ...
DA started successuflly
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0090 , OEM : 014A
[eMMC] : FLASH_INF : [HYNIX] , HYNIX
[eMMC] : FLASH_CID : 90014A2058494E594816A155ED7330F3
[eMMC] : FLASH_EXT : 0x00200000 , 0x00200000 , 0x00200000
[eMMC] : FLASH_LEN : 0x00000000E7000000
[eMMC] : FLASH_UCP : 3696 MiB
INT RAM    : 0x00020000
EXT RAM    : 0x20000000
BOOT TYPE  : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!

[AP] : Initial info read Ok!

Brand     : alps
ProdName  : 11_v77_gq2000_a41_6628_v20
ProdModel : Gadget CIT
Device    : 11_v77_gq2000_a41_6628_v20
AndroidVer: 4.1.2
MTKxCPU   : MT6577
MTKxPRJ   : ALPS.JB.MP.V1

MODEM :
BaseBand  : MT6577_S00_MAUI_11AMD_W12_22_SP_V15



SCATTER THR-M60N MT6577_Android_scatter_emmc.txt

PRELOADER 0x0
{
}
DSP_BL 0x40000
{
}
MBR 0x600000
{
}
EBR1 0x604000
{
}
__NODL_PMT 0x608000
{
}
__NODL_NVRAM 0xa08000
{
}
__NODL_SECCFG 0xf08000
{
}
UBOOT 0xf28000
{
}
BOOTIMG 0xf88000
{
}
RECOVERY 0x1588000
{
}
SEC_RO 0x1b88000
{
}
__NODL_MISC 0x2188000
{
}
LOGO 0x21e8000
{
}
__NODL_EXPDB 0x24e8000
{
}
ANDROID 0x26e8000
{
}
CACHE 0x33fe8000
{
}
USRDATA 0x540e8000
{
}
FAT 0x741e8000
{
}
__NODL_BMTPOOL 0xffff00a8
{
}

DWYOR
